How does one do core calculations for a spot welding transformer?

This question is getting into the area of physics and varies with the frequency of the input power.

The core is based upon flux density and can be calculated based upon physics calculations found in text books presented here.

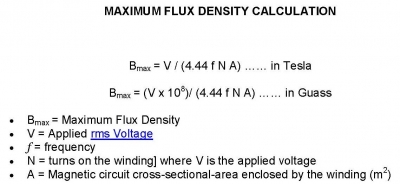

MAXIMUM FLUX DENSITY CALCULATION

Any further discussion is beyond the scope of this forum.
Contact a resistance welding transformer manufacturer for additional assistance.
