Force

Questions and Answers

Squeeze time is the first sequence of a weld schedule. It is designed to allow the electrodes to close and build up full force on the parts before current is applied. If squeeze time is too long it does not hurt the welding operation but it does increase the cost of the total operation by increasing the total time of the weld schedule and thus fewer parts per shift.

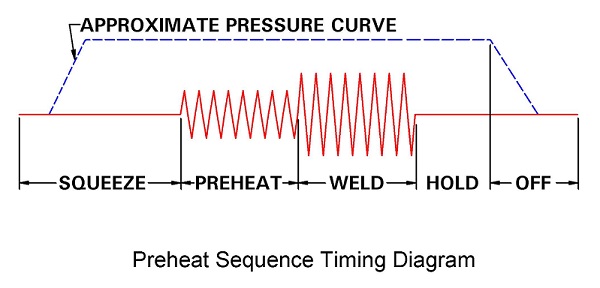

Preheat Sequence Timing Diagram

Read more ...

Cracks appearing in the parent material around the weld nugget can be caused by several issues. They are:

High Weld Force – can fracture the parent material with excessive forging action.
Insufficient Cooling – Over heating can cause excessive stresses from expansion and contraction along with the forging action.
Metallurgy of Material Welded – Some materials become brittle at the temperatures experienced in resistance welding.

Read more ...

Low weld strength can be caused by anything which retards weld nugget growth or formation. It can also be caused by the condition of the materials being welded.

Low Weld Strength1

Read more ...

Internal cracks in the weld nugget can lead to decreased strength and need to be prevented or reduced.

Read more ...

Excessive weld indentation can cause rejected product. It is a condition that is specified is some quality plans, AWS D8.7 Recommended Practices for Automotive Weld Quality- Resistance Spot Welding. To reduce indentation one must reduce excessive forces and heat at the surface.

Read more ...
