What is upslope and downslope in resistance welding?

Upslope and downslope describe segments of the weld cycle where the weld current is either gradually increasing or decreasing. In upslope the weld current gradually increases from a low level to some higher current value. It might be to allow all components to warm up and reform, come together into full contact, before the full current is applied, to reduce expulsion. Downslope is the opposite. It is a gradual decrease from full welding current. This might be to prevent quenching of steel or other heat sensitive material.

Follow the links below for additional data available in this blog:

What is Upslope in Resistance Welding?

What is Downslope in Resistance Welding?

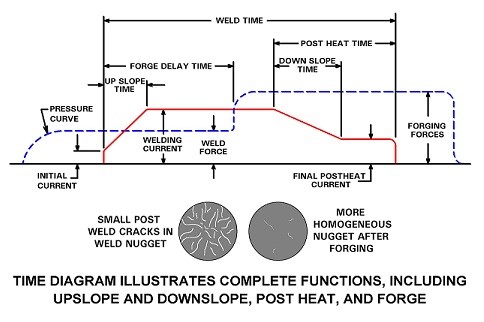

 Upslope Downslope diagram



Reference: RWMA - Resistance Welding Manual 4th Edition
