What Does Class 3 Material Represent?

Class 3 material is a designation of the Resistance Welding Manufacturers Alliance (RWMA).  It describes a group of copper alloys with excellent strength and good electrical conductivity.  Class 3 is often used to weld stainless steel, nickel alloys and other highly resistive - strong materials that require high weld forces.

bar stock

Class 3 Bar Stock



Because of it's excellent strength welding gun arms are frequently manufactured using Class 3 material.  It is used for projection welding and back up electrode applications due to its high hardness and strength.

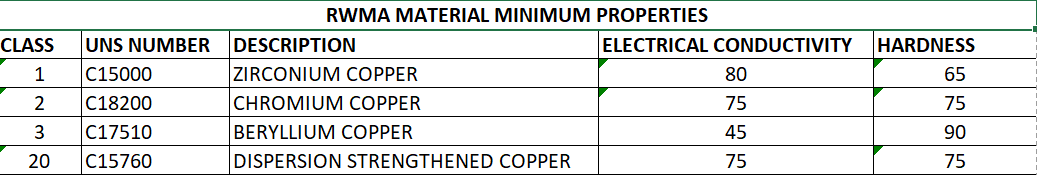

 RWMA CLASS 1 2 3 20

The product description and full properties of Class 3 can be found in the Resistance Welding Manual Section 18-3, available at RWMA/AWS.

and

AWS Standard J1.3 Specification for Materials Used in Resistance Welding Electrodes and Tooling

There are other copper alloy matertials not listed above Clasified by AWS J1.3. They can be seen in:

WHAT ARE GROUP A MATERIALS?

There are other Class materials with other properties all shown in the above reference.  Their properties allow for welding work pieces with both higher and lower resistances and strengths than stainless and nickel alloys.

Reference:  RWMA - Resistance Welding Manual 4th Edition

                    AWS J1.3 - Specification for Materials Used in Resistance Welding Electrodes and Tooling
